A party-wall survey records the exact condition and layout of a shared wall before renovation work begins. When two buildings share a single wall, any structural project needs a clear picture of that wall and how it ties into both properties. The survey documents its shape, its condition, and its relationship to the boundary line. That record protects both owners and gives the design team something solid to build from.

Recording the Wall’s Physical Layout

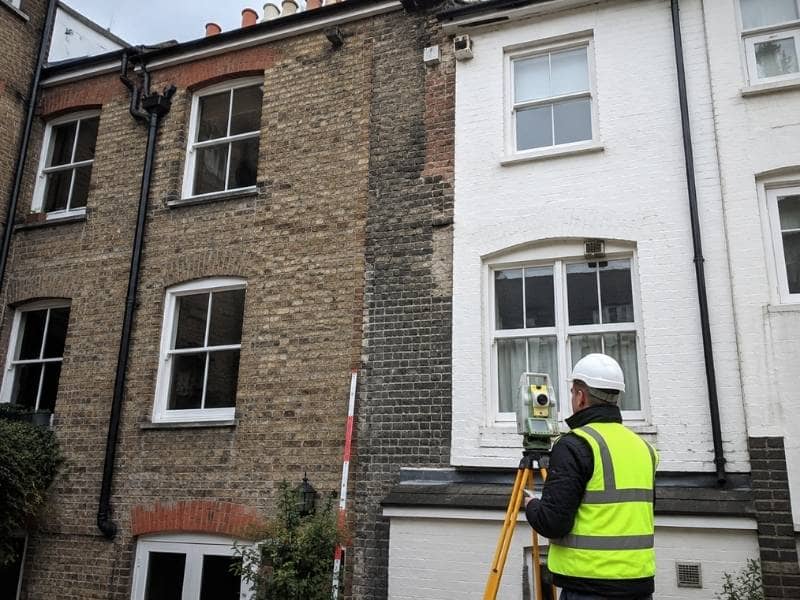

The survey starts by capturing how the shared wall is actually built. The crew records its thickness, offsets, floor relationships, openings, projections, and the roof conditions where it meets each building. These measurements show the real geometry of a wall that two structures depend on. A clear picture here keeps the renovation from running into surprises hidden inside the wall.

Shared walls often hide odd construction that no drawing ever captured. One side might sit higher than the other, or the wall might step and offset as it rises through the floors. By measuring what’s really there, the survey replaces assumptions with facts. That accuracy matters when a contractor plans to cut into or build onto the wall.

Connecting the Wall to the Property Line

A shared wall and the legal boundary are two different things, and the survey sorts out the relationship. The physical center or face of the wall may not sit exactly on the property line, and that gap can matter a great deal in a renovation. The crew ties the wall’s real position to the boundary so both owners understand where the line actually falls. That clarity heads off disputes before the work starts.

Assuming the wall sits neatly on the line invites trouble. If the boundary runs a few inches to one side, a renovation could encroach on a neighbor without anyone realizing it. The survey measures the true relationship so the design respects the real line. That precision protects both parties from an expensive misunderstanding.

Documenting the Wall’s Condition on Both Sides

Before any structural work, the survey captures the wall’s current state as a record. Visible cracks, leaning, patched areas, penetrations, and roof interfaces all get noted on both properties. This pre-work documentation preserves what the wall looked like before the renovation touched it. If damage shows up later, both owners have a clear starting point to compare against.

That record settles arguments that would otherwise turn ugly. A crack that already existed shouldn’t get blamed on the neighbor’s renovation, and honest documentation proves which is which. So the survey photographs and measures the existing condition carefully. That evidence protects everyone if a dispute arises after work.

Coordinating Measurements Across Limited Access

Getting a full picture of a shared wall usually means working on both sides, which takes cooperation. Interior access permissions, adjoining-owner communication, occupied spaces, and obstructed basements all complicate the fieldwork. The crew plans how to tie separate observations together when they can’t reach every part of the wall at once. That coordination fills the gaps that one-sided access would leave.

Access is often the hardest part of the job. A neighbor may be reluctant to let a crew inside, or a basement may be packed with storage that blocks the wall. The surveyor works around those limits and documents any assumptions where access fell short. That honesty keeps the final drawing trustworthy despite the obstacles.

Delivering Plans and Sections for the Team

The finished survey gives the project team clear drawings to work from. Architects, structural engineers, attorneys, and contractors all use scaled plans, elevations, sections, and reference points to guide the renovation. Those drawings translate a complicated shared wall into something each professional can read and act on. A clear set of exhibits keeps everyone working from the same facts.

These drawings also serve the legal side of a shared-wall project. When an agreement between owners needs updating, precise plans and sections give both sides a common reference. That shared clarity smooths negotiations that could otherwise drag on.

Frequently Asked Questions

Does a party-wall survey decide who pays for repairs?

No. Responsibility for repairs comes from the deeds, any party-wall agreements, local law, and legal interpretation of them. The survey documents the wall’s condition and position, but it doesn’t assign who owes what.

Can the survey be done from only one side of the wall?

Some information can be gathered from a single side, but access to both properties usually gives a far more complete picture. Working from both sides reduces the assumptions the crew has to make about the parts it can’t see.

Should the survey happen before demolition begins?

Yes. Documenting the wall before demolition preserves conditions that disappear once finishes or structural pieces come out. That pre-work record is hard to recreate later, so capturing it early protects both owners.
