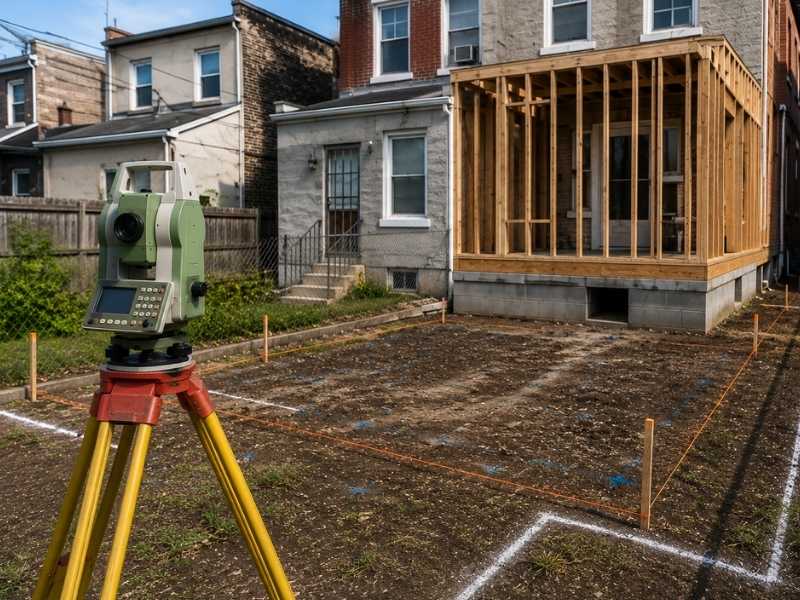

Adding onto a building sounds easy. Draw the plans. Pull the permit. Start digging. But in Philadelphia, lots are tight. Old records don’t always match what’s on the ground. Skipping a boundary survey can turn a simple addition into a legal problem. A cadastral surveyor maps the exact legal limits of your land. This happens before you build. Your addition then lands in the right spot. It also stays out of trouble.

This article covers when a boundary survey matters most. It shows what a survey protects you from. It also shows how a survey keeps your project on time.

Why Should a Boundary Survey Be Completed Before Designing an Addition?

Design starts with a shape. That shape needs to fit inside a boundary. Without a survey, teams often guess. They use old deeds. They use tax maps. They use a fence line that may not be the real edge.

A boundary survey gives everyone the same starting point. It shows where your land ends. It shows where your neighbor’s land begins. Architects can then design an addition that fits the real lot. Contractors know where they can dig. They know where they can pour footings. They can frame walls without crossing a hidden line.

This step also protects your money. Say an addition is built one foot over the line. You may need to redesign it. You may need to move it. You may need to talk with your neighbor after work has already started. A survey done early costs much less than a fix done late.

How Close Can a Building Addition Be to a Property Line?

Every city sets rules for this. These rules are called setbacks. A setback is the smallest gap allowed between a structure and the property line. Philadelphia’s zoning code lists these gaps. The gap depends on your zoning district. It depends on your lot type. It depends on the kind of addition you plan to build.

Setbacks are measured from the true boundary line. They are not measured from a fence. They are not measured from a hedge. They are not measured from a line you assume is correct. This is where many projects go wrong. A fence built years ago may sit a few feet off the real line. If you measure from that fence, your addition may end up too close to the true boundary.

A licensed surveyor finds the real property corners first. Then your design team can measure setbacks the right way. This helps your addition pass zoning review the first time.

Can Easements Limit Where a New Addition Is Built?

Yes, they can. An easement gives someone else the legal right to use part of your land. You still own that land. But you may not control how it gets used. Utility companies often hold easements. These cover underground lines, poles, or access to equipment. Some lots also carry drainage easements. Some carry shared driveway easements. Some carry access easements for a neighbor’s lot.

These rights can shrink the space you can build on. This is true even inside your own property lines. You may own the land. But you may not be able to build on that exact spot.

A boundary survey usually shows the recorded easements on your lot. This helps your design team avoid placing walls or footings in a restricted area. It is much better to learn this during design. It is much worse to learn it after a crew has already started digging.

What Boundary Problems Can Surface During Addition Planning?

Older properties often hide boundary surprises. This is common in a city as old as Philadelphia. A survey can find these problems before they turn into construction problems.

Missing or shifted monuments are common. A monument is a small marker that shows a property corner. It is often a metal pin or a concrete marker. Years of construction, yard work, or weather can move these markers. They can also bury them. A surveyor uses old records and new field work to find these points again.

Encroachments show up often too. A neighbor’s shed, fence, or driveway might sit partly on your land. Or your own building might sit partly on theirs. Fence lines rarely match the true legal line. Most fences were built by eye, not by survey.

Old records and real field evidence can also disagree. An old deed may describe the boundary one way. A new survey may show something different on the ground. Finding this out early gives you time to fix it. You can fix it through legal steps. You can fix it through simple agreements. Either way, it is much easier to solve before you build.

Can a Boundary Survey Help Prevent Permit and Construction Delays?

Permit reviewers check your plans against real boundaries. They also check your plans against zoning rules. If your plans use wrong boundary guesses, a reviewer may flag your application. This means you redraw your plans. You resubmit them. Then you wait through another review.

A current boundary survey lowers this risk. Your plans then show the real property lines. They show the real setbacks. They show the real easement limits. This lowers the chance that your permit gets rejected.

The same idea applies once building starts. Fixing a placement mistake mid-build costs a lot. It may mean tearing out finished framing. It may mean shifting a foundation. It may mean pausing work during a dispute. A survey done before design starts catches these problems on paper. Problems on paper are much cheaper to fix than problems in concrete.

Frequently Asked Questions

How long does a boundary survey take?

Most home boundary surveys take one to three weeks. This is from order to final report. Lot size can affect this time. Record availability can affect it too. Older lots with a messy history may take longer. Ask your surveyor for a timeline that fits your project.

Do I need a new survey if I already have an old one?

This depends on the age of your old survey. Old surveys may miss newer easements. They may miss updated zoning rules. If your survey is more than a few years old, get a new one. If you are not sure it covers your addition area, get a new one too. Your surveyor can review the old report first. They can tell you if an update is enough.

Who pays for a boundary survey, the owner or the contractor?

The property owner or developer usually pays for the survey. This protects their own investment. It also supports the permit process. Some contractors ask to see the survey before they finalize a bid. It is best to get the survey done before you sign a construction contract.

What happens if a survey finds an encroachment?

This means part of a structure crosses the property line. You will likely need to fix this before you build. This might mean a boundary agreement with your neighbor. It might mean a legal easement. It might mean moving the structure. Your surveyor can document the problem clearly. This gives you solid facts for any next step.

Can I use a satellite map instead of a survey?

A satellite map can give you a rough idea. It is not accurate enough for real construction. These tools use public tax records. Those records can be off by several feet. For any new building work, use a licensed cadastral surveyor. They confirm the real boundary through field work and legal records.
